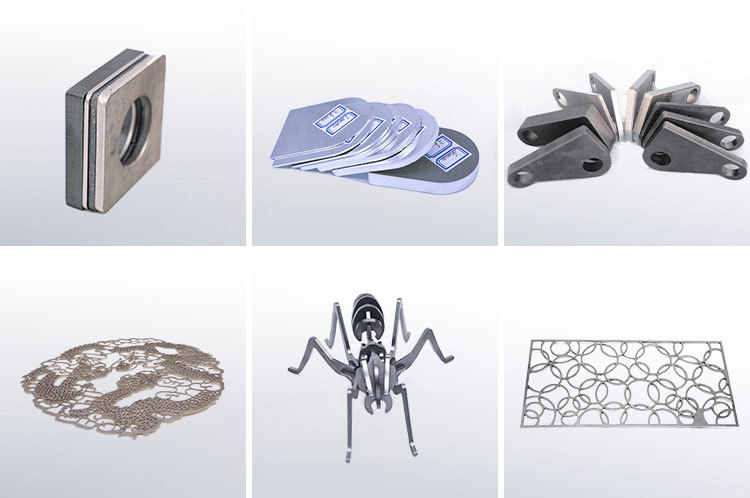

Widely used for metal sheet processing, advertising trademark, advertising character,
high/low voltage electrical cabinet, mechanism parts, kitchenware, cars, mechanical, metal craftwork, saw blade,
electronic parts, eyeglasses, spring, circuit board, kettle, medical microelectronics, hard ware,
knives tool, measurement, instrument, etc.
Working Size: 2500x6000mm
Laser Power: 6KW-50KW
Cut Thick: 0-40mm Mild Steel
 |
Super Large Format:The dust removal system adopts a blowing and suction design. The fan on one side delivers air powerfully, and the dust collector on the other side sucks air efficiently. This two-pronged approach has excellent dust removal effects, extends the life of the equipment, creates a green and environmentally friendly working environment, and better protects the health of operators. |
|

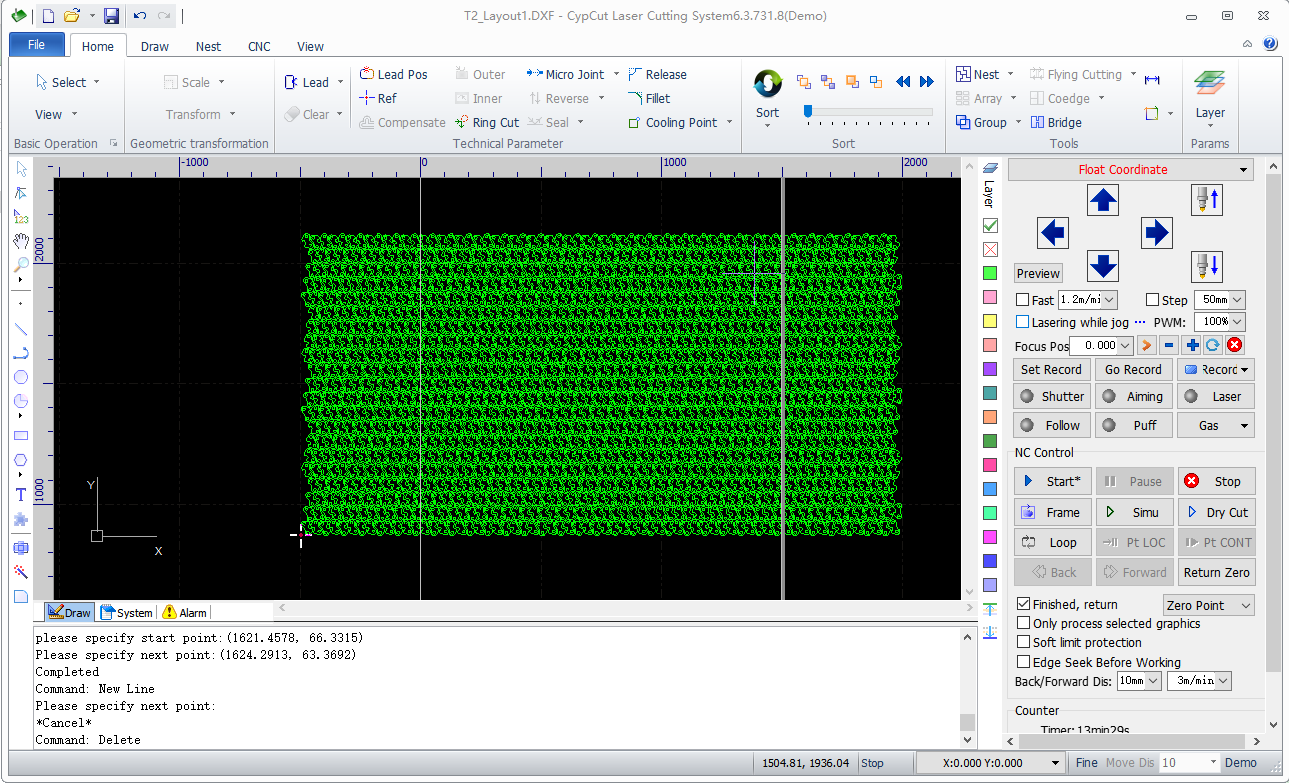

FSCUT hardware and Cypcut software FSCUT laser cutting system is a full-solution specially designed for sheet metal fabrication industry, with features of easy to install and adjust, excellent performance and fully integrated solutions. CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. It simplifies complex CNC machine operation and integrates CAD, Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks. |
 |
 |
Better performance and looks brighter than cast aluminium, stable and not easy deformed, light in weight and good in dynamic performance. After secondary vibration and aging treatment, it is finished to ensure the strength, rigidity and stability of the beam. |
|

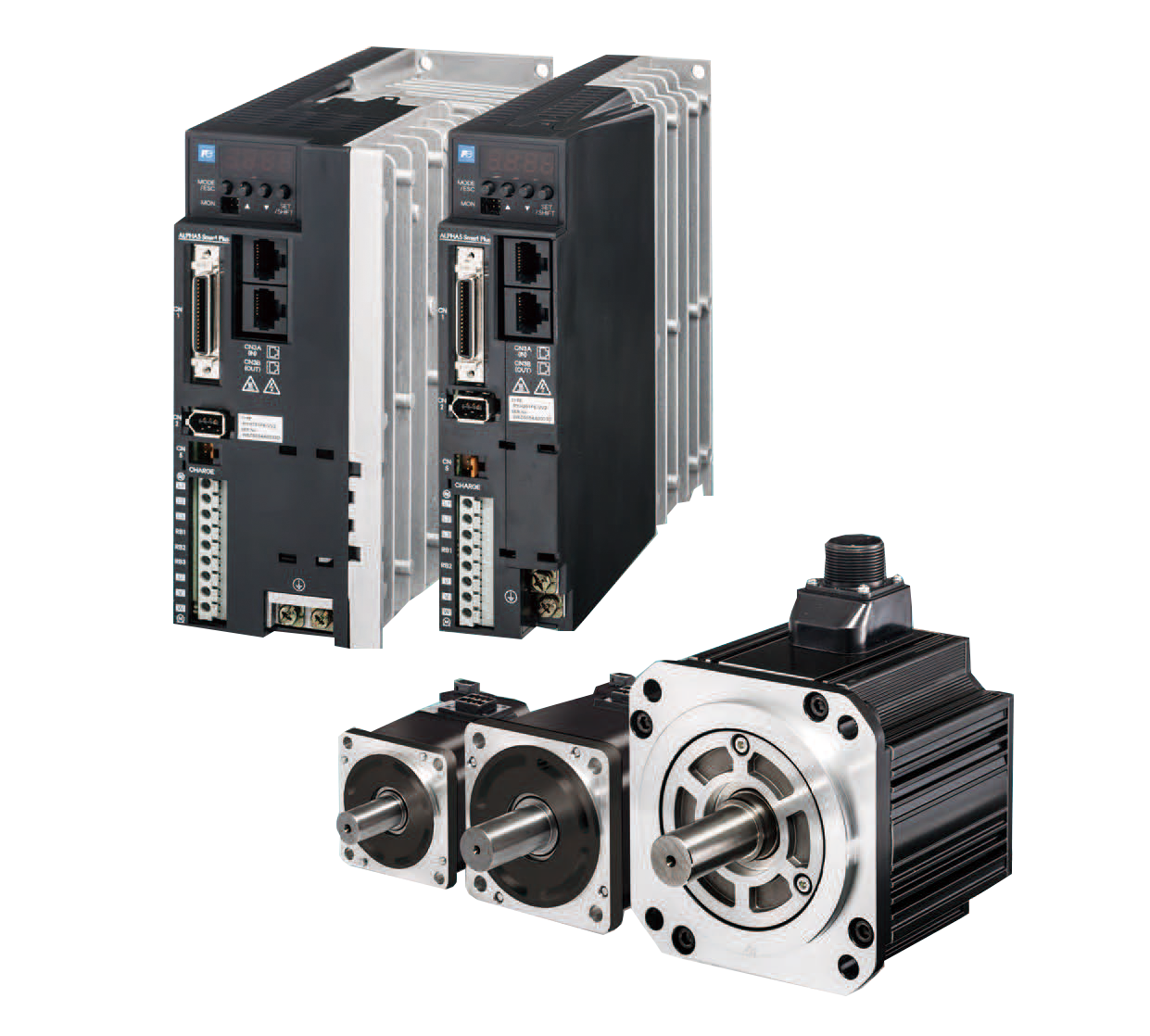

The YASKAWA Servo Motors and Drives with fast dynamic response provides speed and performance stability. The max idle speed of the machine can reach up to 100 m/min with the Acceleration of 1.2 G. |
 |
