1KW,3KW,6KW fiber laser cutting machine China for UAE SA market

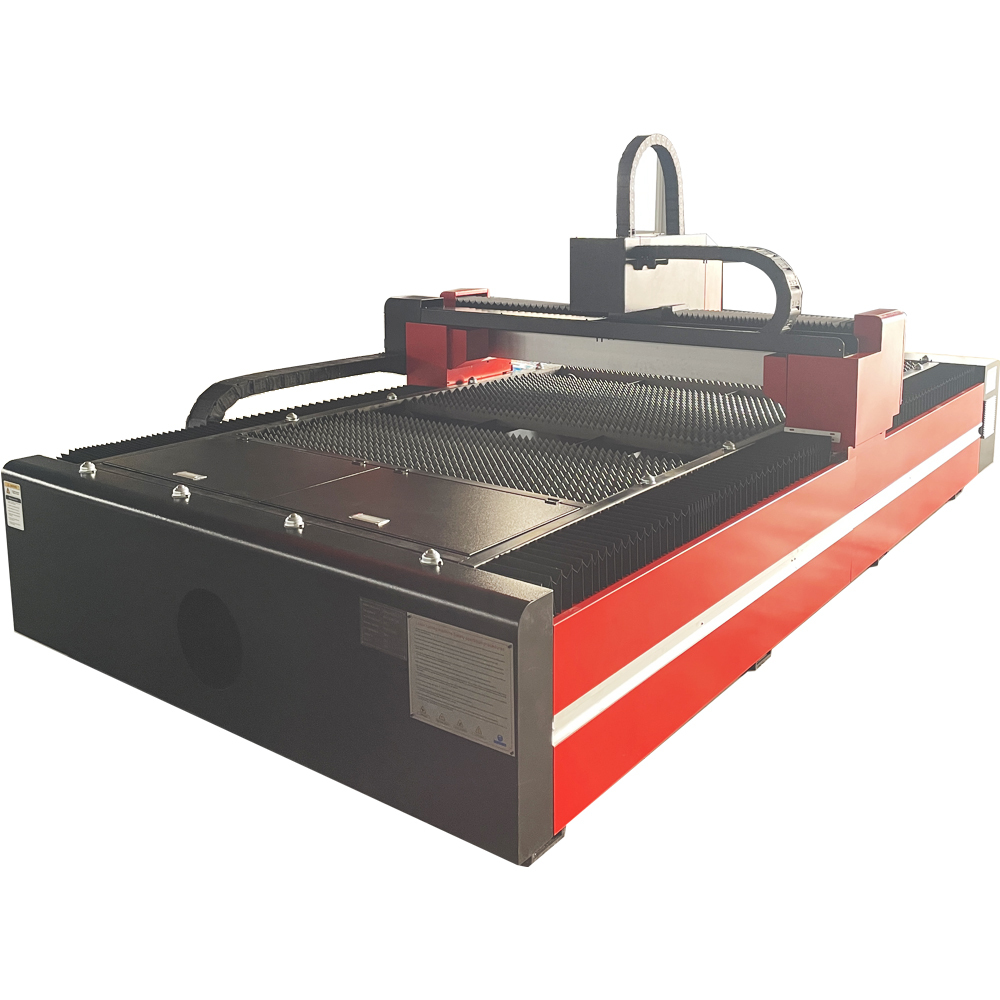

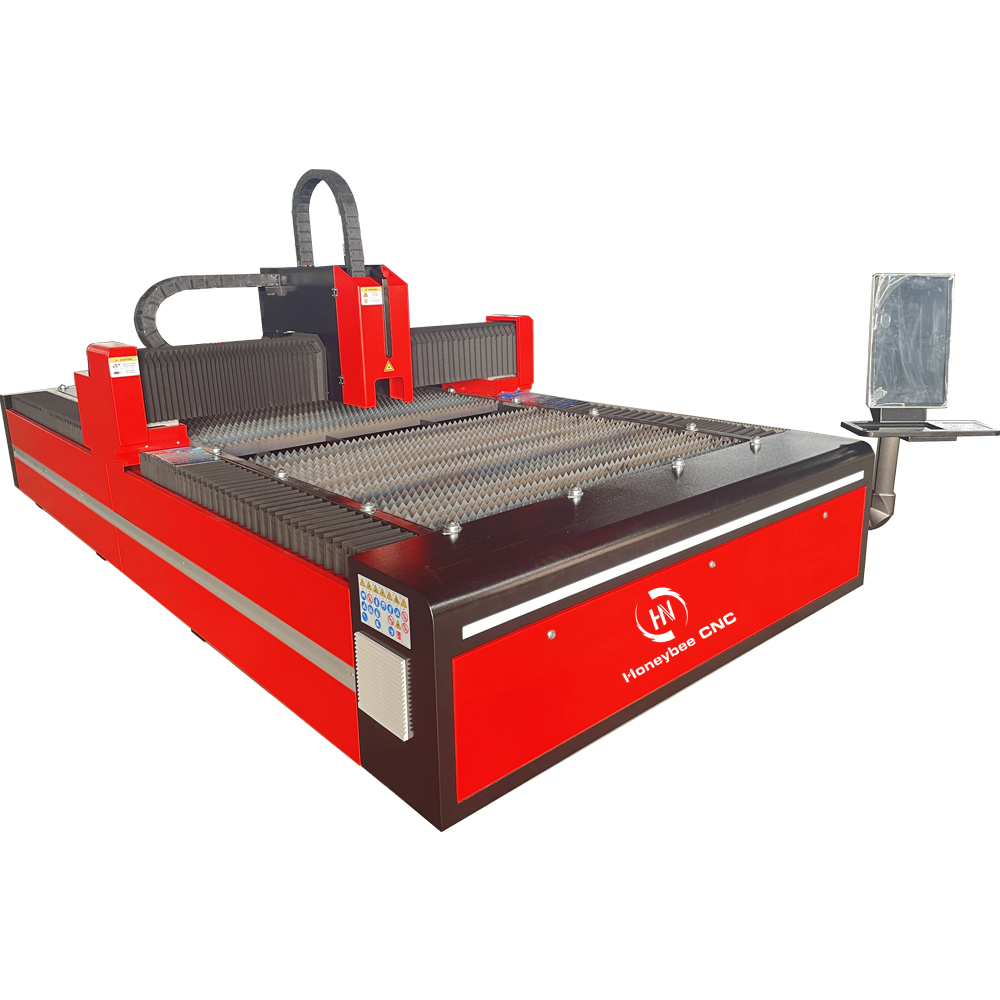

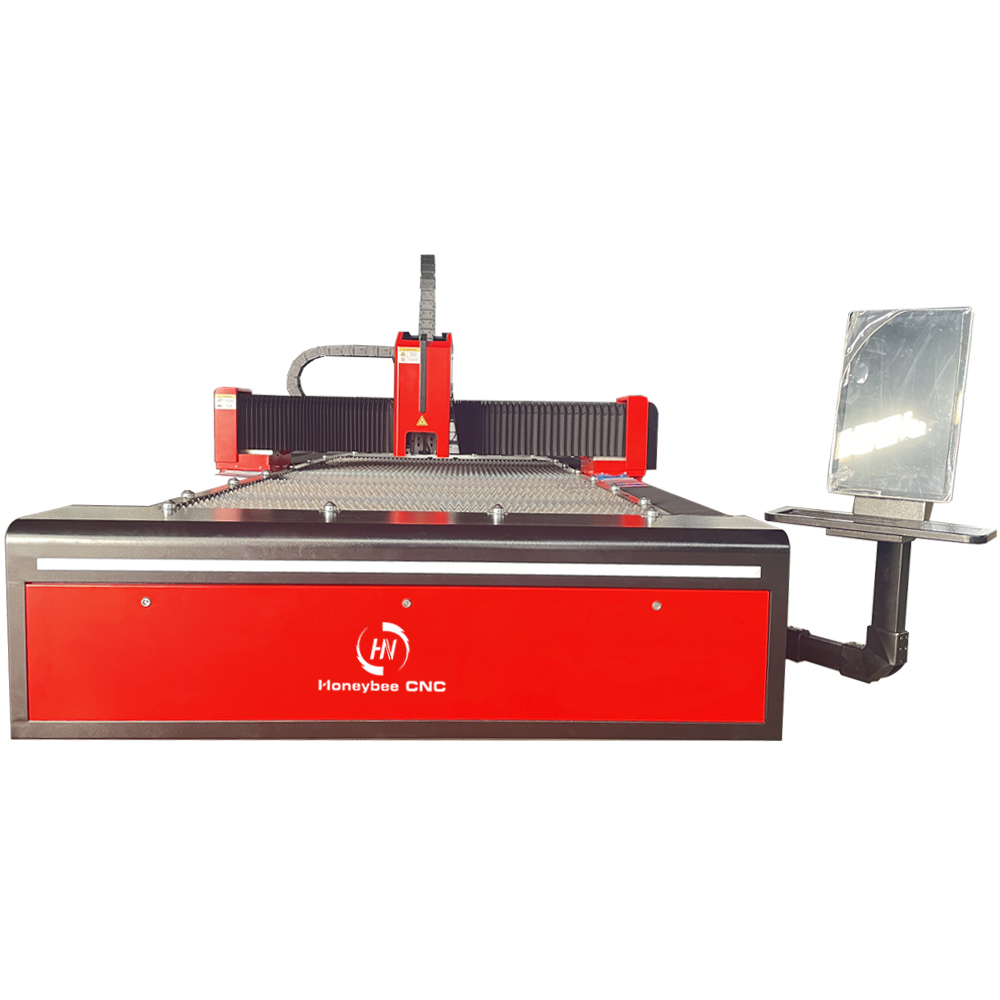

Our open laser cutting machine for small business features compact size, low cost & easy operation. 1000W–3000W fiber laser for small metal fabrication workshops, free cutting test, factory direct price. Request quote now.

Core Advantages of Open‑type Laser Cutting Machine for Small Business

  1. Cost‑effective initial investment Lower purchase cost compared with fully‑enclosed models. Ideal for small fabricators, workshops and start‑ups, shorter pay‑back period.
  2. Convenient material loading & unloading Open‑structure allows sheet loading from multiple sides. Extra‑long plates can overhang the working table. Easy part removal and slag cleaning, perfect for frequent job change‑over.
  3. Easy access for maintenance No full enclosure cover. Operators can inspect rails, cutting head and optical components directly. Faster replacement of consumables, less downtime.
  4. Perfect for small‑batch & custom‑order production Read DXF/DWG files directly, no mould cost. Quick switch between different drawings for samples, prototypes and diversified custom jobs.
  5. Space‑saving footprint Compact layout without large surrounding housing. Fits standard small workshops without special civil construction.
  6. Reliable cutting performance Handles carbon steel, stainless steel, aluminum and other common metals. Optimized nesting improves material utilization and reduces material waste.
  7. Flexible upgradability Optional dust‑extraction unit and safety light curtain can be added later according to workshop requirements.
下载
查看所有下载
  • Open laser cutting machine for small business,Honeybee,Open laser cutting machine for small business
  • Open laser cutting machine for small business,Honeybee,Open laser cutting machine for small business
  • Open laser cutting machine for small business,Honeybee,Open laser cutting machine for small business

Description

This plate laser cutting machine is a composite industrial laser processing equipment that integrates the dual functions of tube cutting and sheet cutting. Through a set of laser cutting system and switchable processing platform, it realizes high-precision and efficient cutting of metal tubes (round tubes, square tubes, special-shaped tubes, etc.) and metal sheets (carbon steel, stainless steel, aluminum alloy, etc.). It is widely used in various fields such as steel structure, furniture manufacturing, auto parts, advertising signs, and hardware products, and is especially suitable for small and medium-sized processing plants or production scenarios with multi-category mixed processing needs.


Model Specifications

HN-H3015

Type

Single Worktable, Full Closed

Fiber laser source

MAX 6KW Anti-reflective

Effective working length X axis

1500mm

Effective working length Y axis

3000mm

Max cutting thickness

MS ≤22mm  SS≤14mm

X,Y axis positioning accuracy

±0.02mm/m

X,Y Axis repositioning accuracy

±0.02mm/m

X,Y Axis moving speed

≤90m/min

Rated supply voltage and Frequency

380V, 3Phase, 50Hz

Power consumption

41KW(exclude fume extraction device)

General power protection class

IP54

Maximum load of worktable

800KG

Gross weight

3800KG

Dimension (Length*Width*Height)

5077*2247*2272mm




  1. MAX Laser Capacity and Cutting Thickness

MAX

Carbon Steel

Stainless Steel

Aluminum

Brass

1500W

12

6

4

4

2000W

16

6

4

4

3000W

18

8

4

4

4000W

22

10

6

6

6000W

22

14

12

12

12000W

35

25

18

18

15000W

35

25

20

20

20000W

45

40

30

20






Heavy Welded and Heat Treated
Working table

The bed body adopts the overall welded structure of steel. It is subjected to roughing after annealing to eliminate internal stress. And is finished by secondary vibration aging treatment, which better solves the stress caused by welding and processing. Thereby it greatly improved the machine tool stability.

Aviation Aluminum Beam

Better than cast aluminium, strong rigidity, high density, looks brighter than normal cast aluminum, stable performance and not easy deformed.



Fume Extraction Unit

Specification

Model

LW - 075

Flow Volume

5070-6500 m³/h

Power

7.5KW

Filtering material

Imported nano flame retardant

filter material

Filter Cartridge Qty.

6 Pcs

Filter Cartridge Filtering Area

132㎡

Connection size

Φ300 mm

Flame trap

Yes

High efficiency metal fireproof mesh

Yes

Compressed air needed

0.5--0.6MPa, dry and oil-free

Clean mode

Pulse automatic cleaning

Dimension

1900x1100x2200mm

Weight

860KG

Power supply voltage

380V, 3PH, 50/60HZ
