Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgy equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, aluminum coated zinc plate, pickling board, copper, silver, gold, titanium and other sheet metal and pipe cutting.
(1) high precision, fast speed, narrow kerf width, minimum heat affected zone, the cutting face smooth without burr.
(2) the most narrow kerf width, minimum heat affected zone, the local deformation of workpiece, no mechanical deformation.
(3) the processing flexibility, can be processing any graphics, can also cutting pipes and other profiles.
(4) can be steel plate, stainless steel, aluminum alloy, hard alloy, etc. Any hardness material without deformation of the cutting.

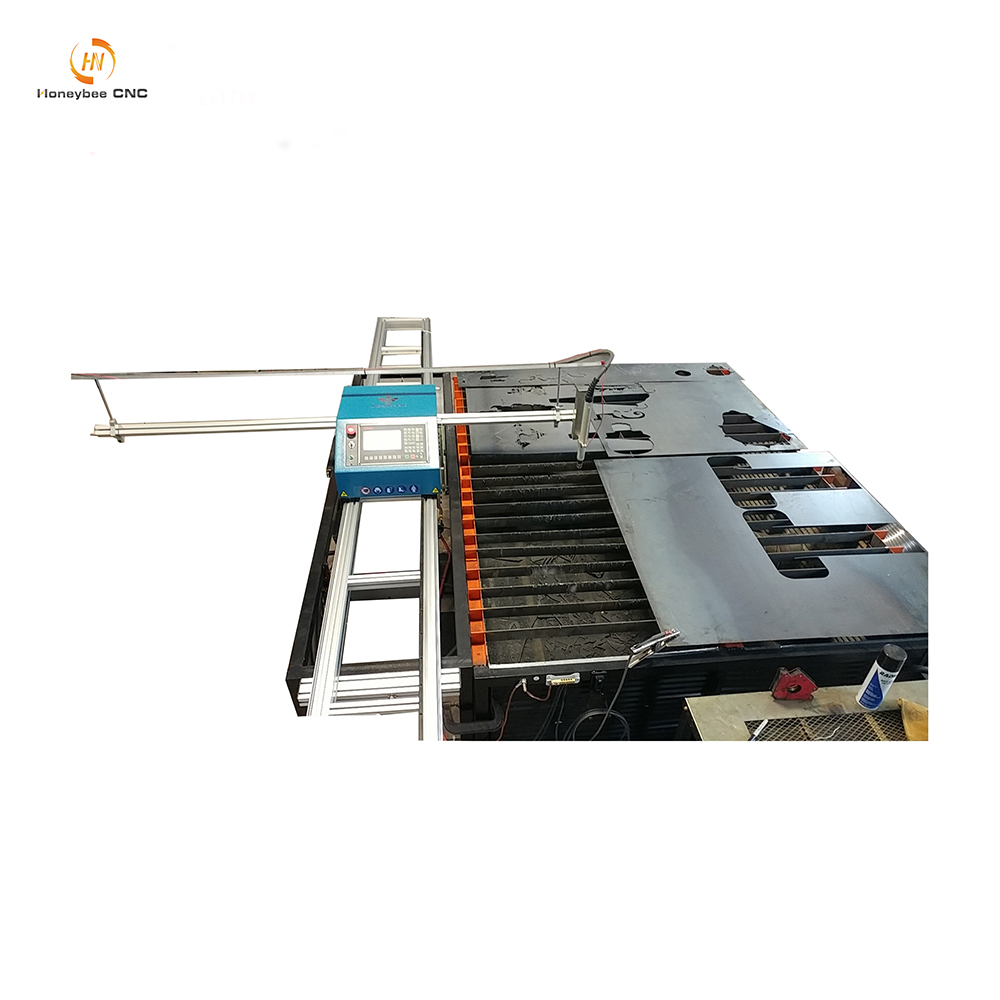

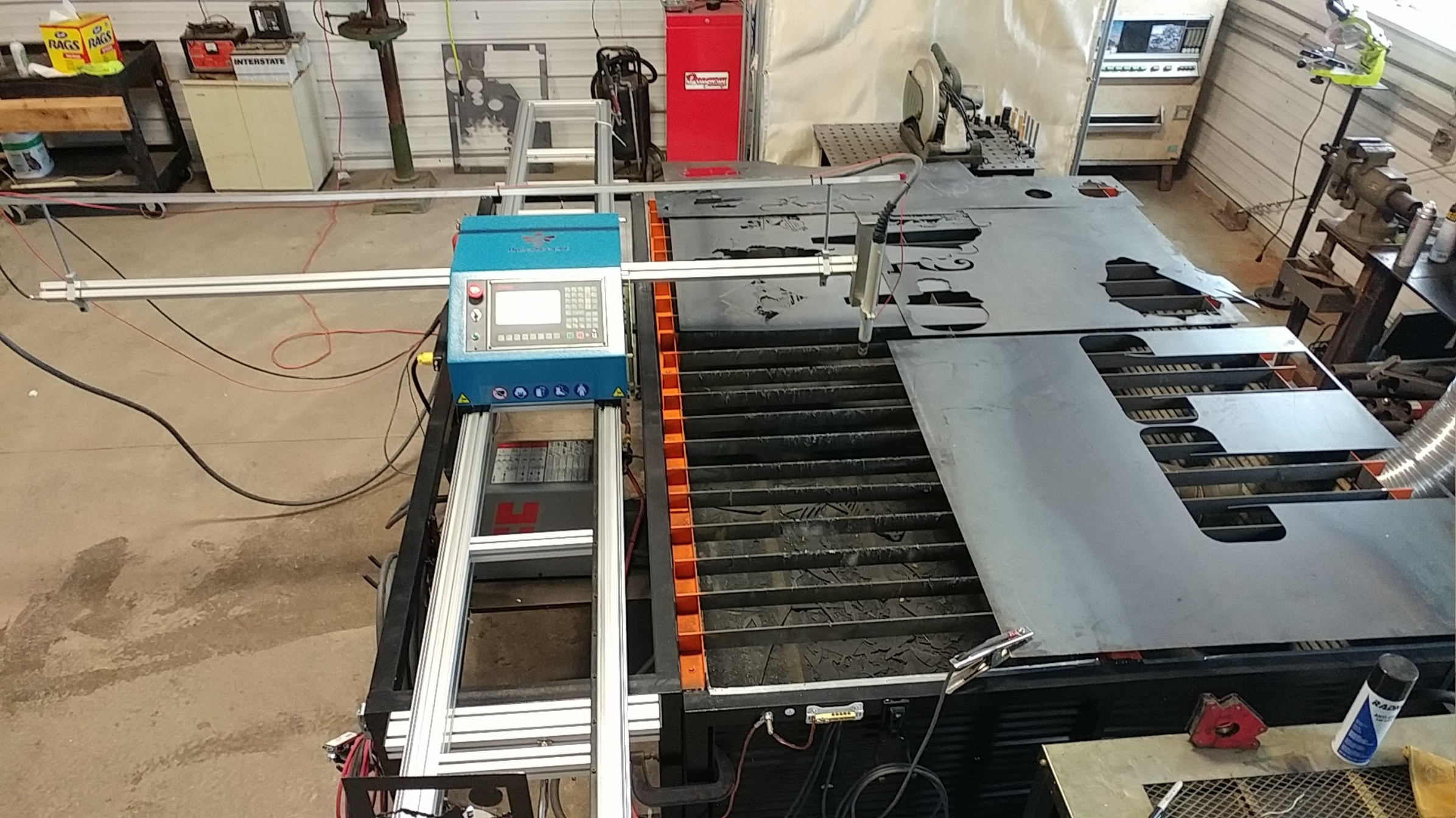

China sell portable cnc plasma machine for metal cutting
Model:HNP-1600X3400
Economic, light weight; Compact!
Both plasma and flame cutting
Standard working size 1600x3400mm
Size can be extended to 1600x8000mm
| Model | HNP-1600X3400 |
| Power Supply Voltage | 220V/110V, 1phase |
| Power Supply Frequency | 50HZ / 60HZ |
| Rated Power Supply | 180W |
| LCD Display Dimension | 7.0Inches |
| Effective Cutting Width (X axis) | 1600mm |
| Effective Cutting Length (Y axis) | 3400mm can extend by every meters |
| Cutting Speed | 0-3000mm per minute |
| Plasma Cutting Thickness | 2–22mm ( Depends on plasma power source capacity) |
| Flame Cutting Thicness | 6-150mm mild steel from edge 6-80mm pierce |
| Certificate | CE, ISO9001:2000 |
| Cross Beam Length | 2200mm |
| Longitudinal Rail Length | 4000mm |
| Longitudinal Rail Width | 196mm |
| Host Machine Dimension (L*W*H mm) | 508*344*305 |
| Cross Beam Weight | 9.3kg |
| Host Machine Weight | 26.7kg |
| Longitudinal Rail Weight | 34.5kg |
| Total Net Weight | 100kg |
| Plasma Power Source | Victor A60,80 , Cutmaster151 ,CutmasterA120 Hypertherm PowerMAX 45,65,85,105 125 , 1000/1250/1650/45/65/85/105 ESAB ESP101,Any other Chiese brand plasma supply |
| Plasma Air | Only press Air |
| Plasma Air Pressure | Max.0.8 Mpa |
