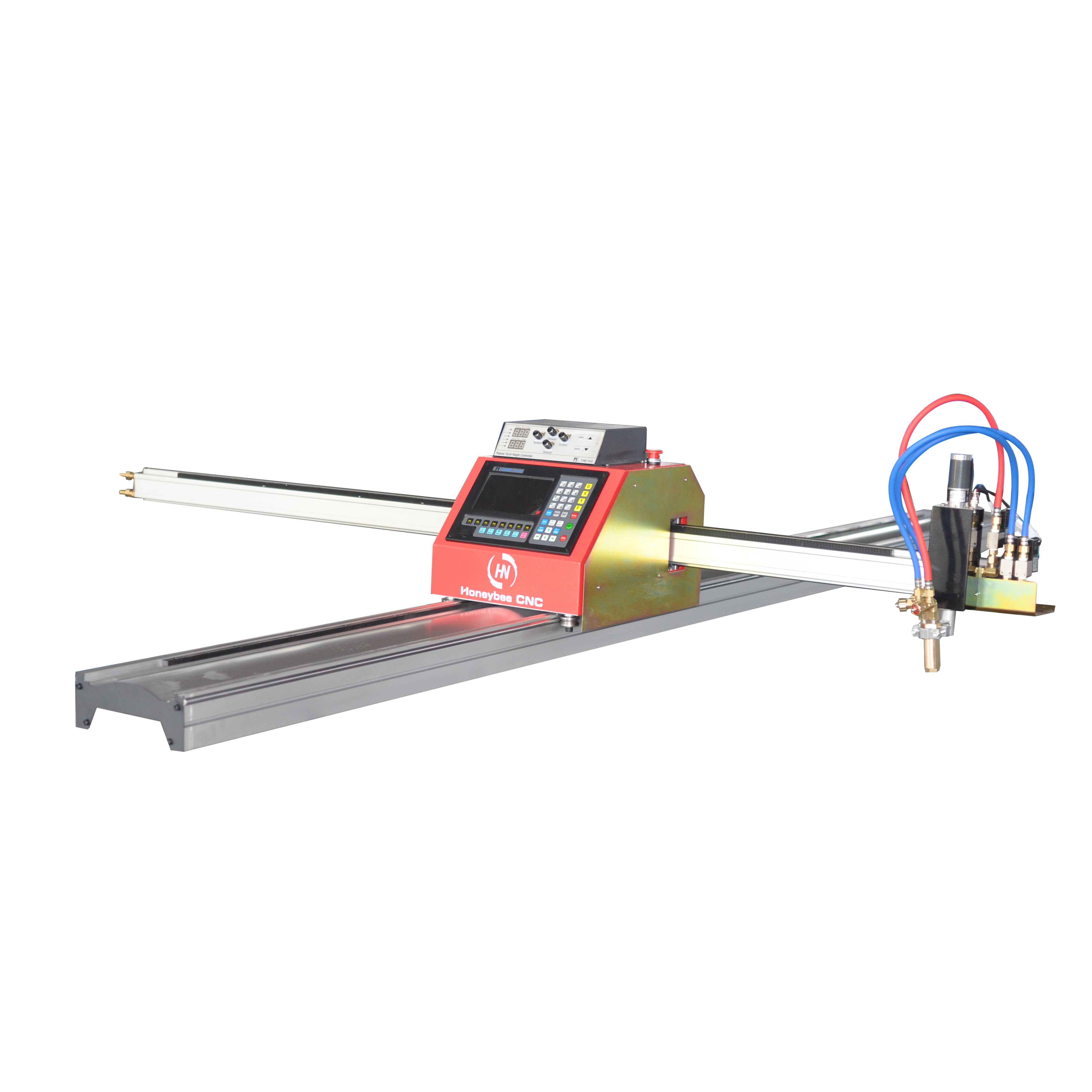

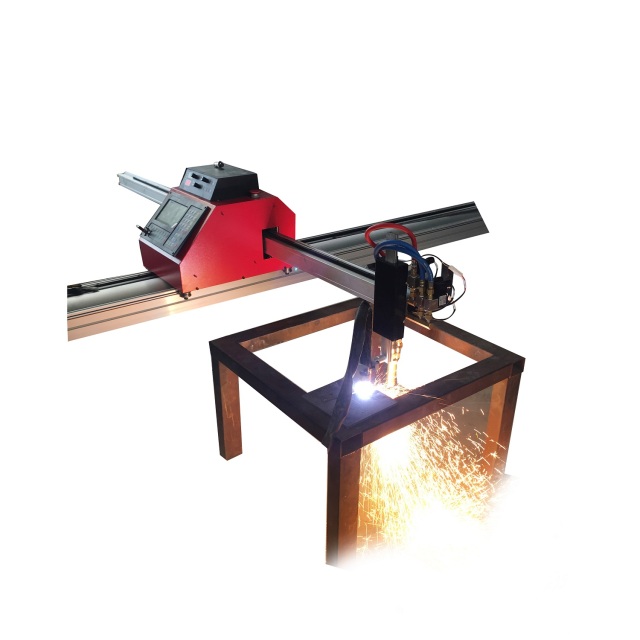

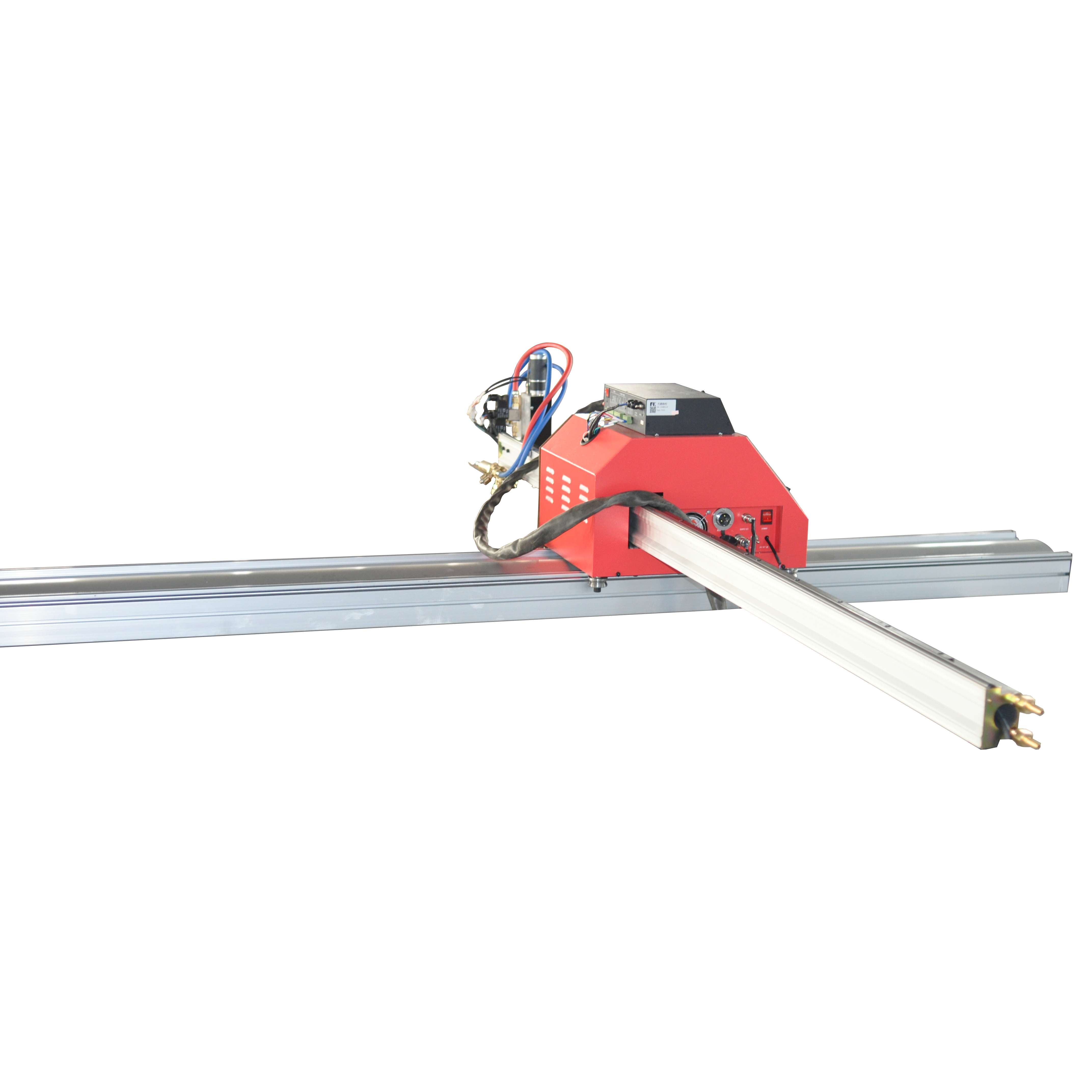

CNC plasma cutter portable-Minibee

This CNC plasma cutter portable-Minibee cutting equipment with digital program control. In addition to automated cutting, it has high cutting precision, high material utilization, and high production efficiency. Along with the mechanical electronic technology and computer technology progress, the CNC cutting machine with its good man-machine dialogue operation interface, powerful auxiliary support function, and relative low equipment investment, is being valued by more and more enterprises and m

GET A QUOTE

下载

查看所有下载

Description

CNC plasma cutter portable-Minibee
Advantages:
1.Good Working stability, high frequency interfere effectively plasma, lightweight portable;
2.Support two cutting ways of flame and plasma;
3.Economic benefits, the structure and design is contracted. it adopts humanistic positive
man-machine conversation and operate easily;
4.Cutting has high quality, high effect level, high precision;
5.Programmable cutting arbitrary shape parts of line and arc;
6.Dynamic and static graphic display, easy to learn. Can convert CAD file to program file in
computer, through USB flash drive transmits to machine to realize cutting all kinds’ graphs.
And also can program and operate directly on the machine.
7.English and Chinese interface can free to convert;
8.Pre-sale will train and after-sale will track service.

Portable CNC plasma cutting machine/CNC plasma cutter/CNC cutting machine parameters:

Model	HBO-1530	HBO-1530P
Plasma THC	Flame	Flame with Plasma
Effective Cutting Range (X*Y	1500x3000mm	1500x3000mm
Torch Height Control Style	Torch Height Control Style	`Plasma THC`
Input Power (Approximately 200W)	110V/220V ; 50/60HZ	110V/220V ; 50/60HZ
Transmission Style	Rack And Gear	Rack And Gear
Motor Style	86 Series Step Motor	86 Series Step Motor
Move speed	0-3000mm/min	0-3000mm/min
Torch Lifting Distance (Z)	≤100mm	≤100mm
Flame (Plasma) Cutting Thickness	Piercing Capacity: 5- 60mm; Edge Start: 5 -160mm	0-20mm mild steel depends on plasma capcity
Gas Pressure	Acetylene Gas or Propane Gas Max 0.1Mpa	Acetylene Gas or Propane Gas Max 0.1Mpa
Oxygen Pressure	Oxygen Gas Max 0.7Mpa	Oxygen Gas Max 0.7Mpa
Air pressure for plasma cutting	/	1.0Mpa
Cutting Table	Separated with main machine.Cutting table will be optional supplied.	Separated with main machine.Cutting table will be optional supplied.
Net weight	100kgs	105kgs

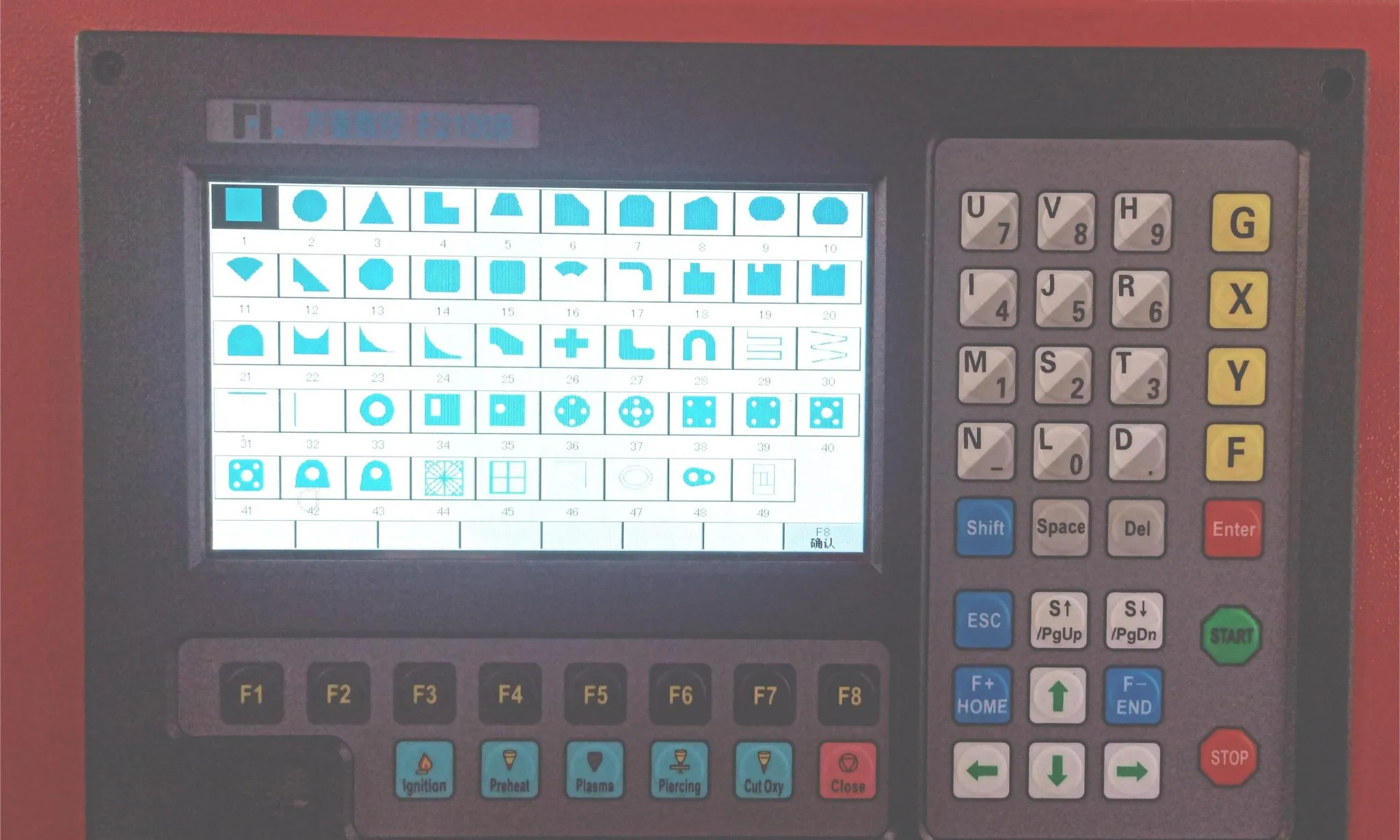

	CNC controller: Build-in common 48 standard graphics, can be edited, fast settin

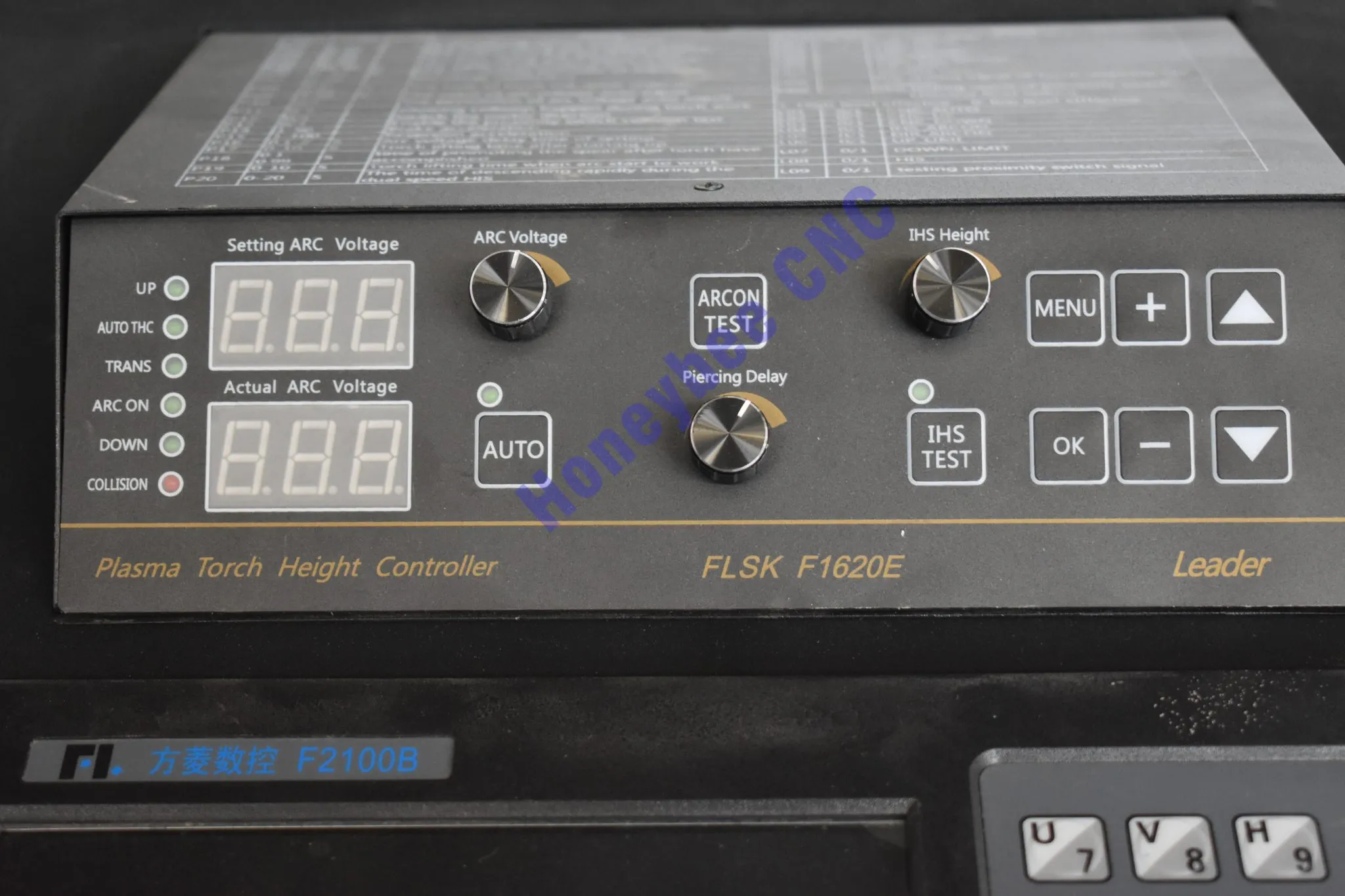

THC: High sensentive torch height control, automatic torch height control, torch will go up and down when plate not flat

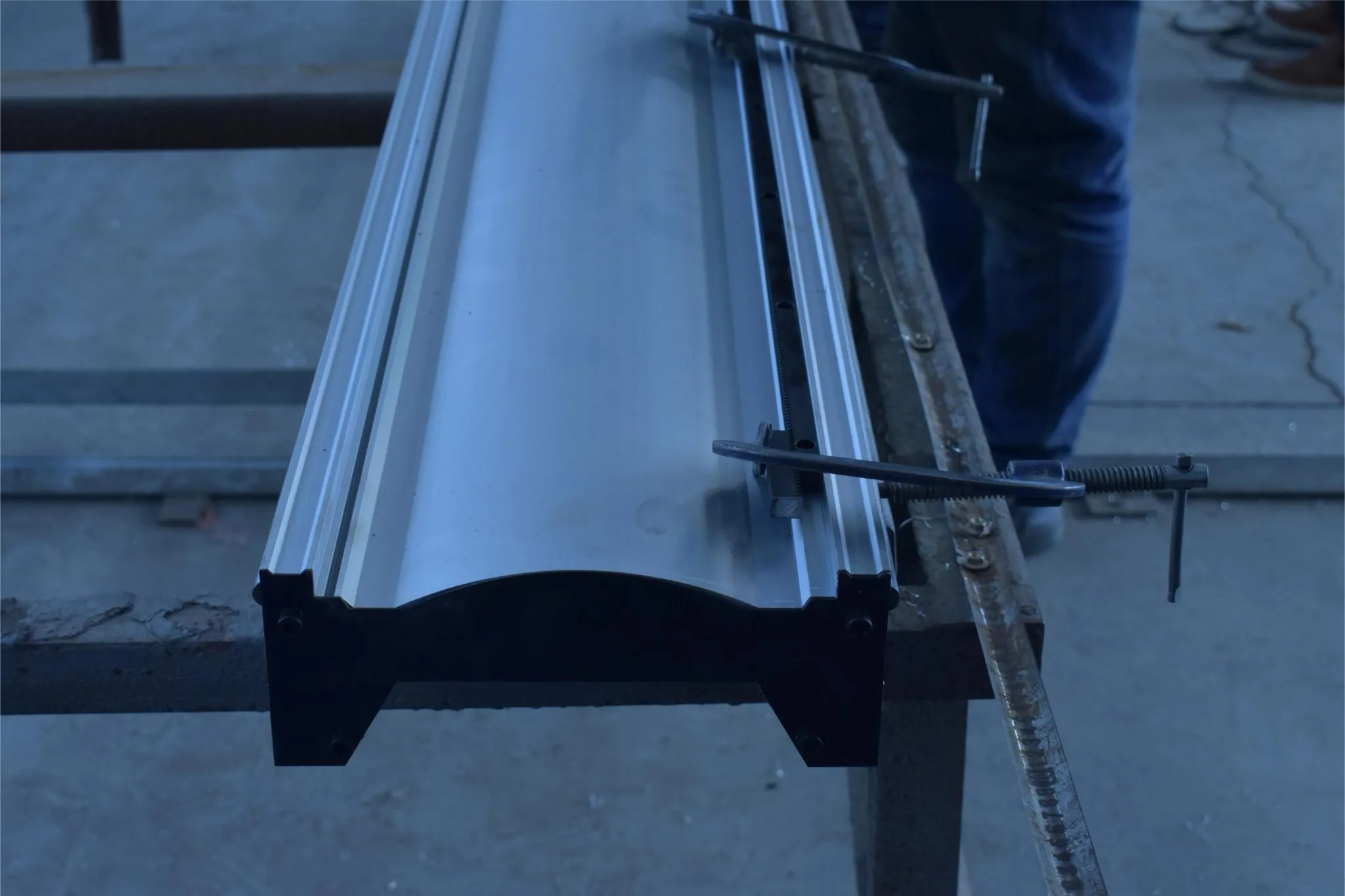

	Guide Rail: Newly opened mould, one-piece type rail, Widening and thickening rail and base.
