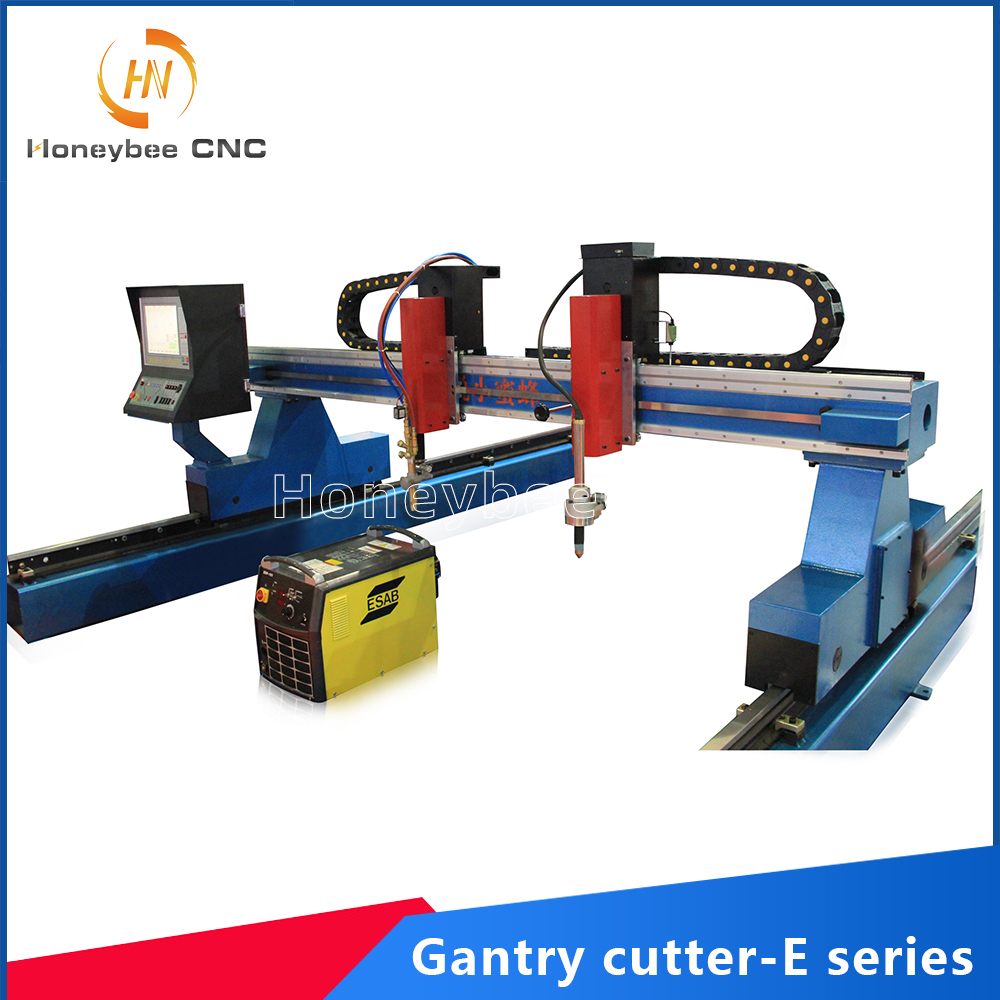

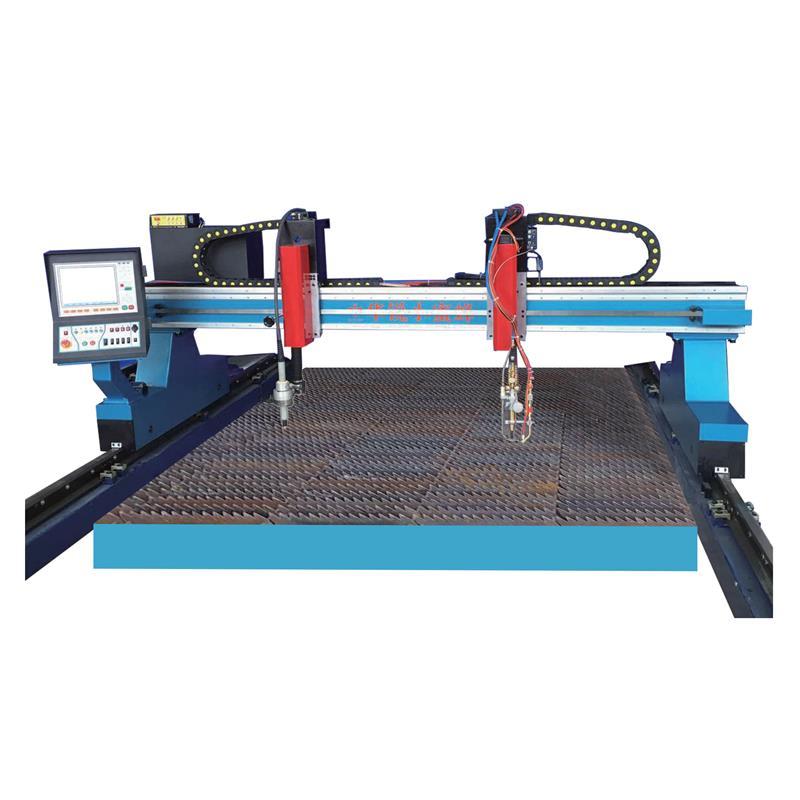

ECO is a new product which launched by us Honeybee in 2012. It has features of compact size, lightweight, complete functions, and big effective cutting size. It enjoys all functions of traditional heavy-duty gantry CNC cutting machines.
Honeybee CNC gantry cutting system is a piece of modern cutting equipment, which controlled by the digital program. Except for the high automation, it has the advantages of high precision, efficiency, and material utilization. With the development of machinery and electronics and computer technology, CNC cutters are more and more attended by enterprises due to good man-machine interface dialogue, strong auxiliary functions, and lower equipment investment. It is widely used in many fields like car, shipyard, an engineering company and so on. The CNC cutter is constituted of the framework, vertical drive, horizontal drive, rail, cutting torch components, CNC system, gas circuit system, electric system, and vertical, the horizontal towing device of hoses. The configuration of this CNC cutting machine is especially for the small hole cut with very good quality without slag. Based on the Hypertherm Ture hole plasma cutting technology our CNC cutting machine could cut the minimum diameter as same as the thickness from 6 to 32mm.
| Name | Honeybee Eco Gantry CNC Cutting Machine |
| Model | HNS-3000×6000×1+1A |
| Structure | Gantry, dual drive, Panasonic servo motor, and Japan Gear or Mitsubishi motor with Germany Gear |
| Track span & Guide rail | 3000×6000mm, rail length can be extended every 2 meters |
| Effective cutting size | 2400×4500mm; length can be extended every 1 meter |
| Transmission | Longitudinal and Transversal main trolleys: rack & pinionTransversal slave trolley: steel belt |
| Tube Transmission | Transversal: Industrial plastic drag chain; Longitudinal: Hanging pulleys or earthing drag chain |
| Cutting thickness | Oxy-fuel 6-150 mm; Plasma:2-32mm depends on plasma capacity; |
| Torch No. | 2 |
| Torch height control | Motorized |
| Servo system | Dual AC Panasonic servo drive systems |
| CNC system | HBCNC |
| Speed regulation range | 0–12 m/min |
| Cutting fuel | Oxy-fuel: Oxygen +Acetylene/PropanePlasma: Depends on the plasma power source required |
| File transmission | USB |
| Accuracy | Complete machine: accords with JB/T5102-1999 standard, Cutting dimension accuracy and quality: accords with JB/T10045.3-1999 standard,the national standard A and I level |
 |

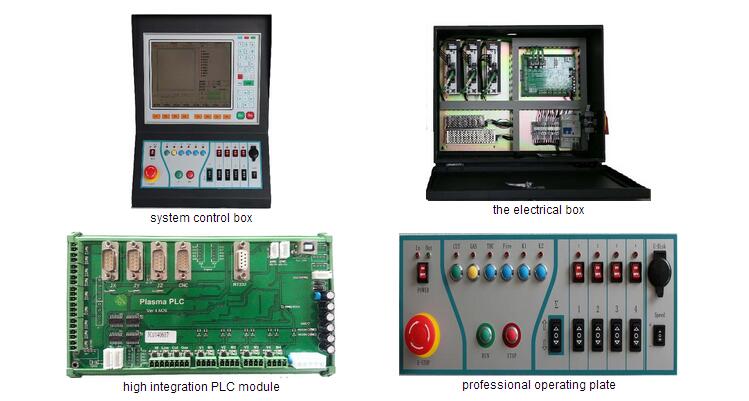

Equipped with professional CNC cutting control software, supporting DXF, DWG and other mainstream drawing formats for direct graphic import. Functions including automatic layout, pierce point optimization, edge retraction, torch height automatic adjustment and fault self-diagnosis reduce manual intervention and lower operator skill thresholds. |

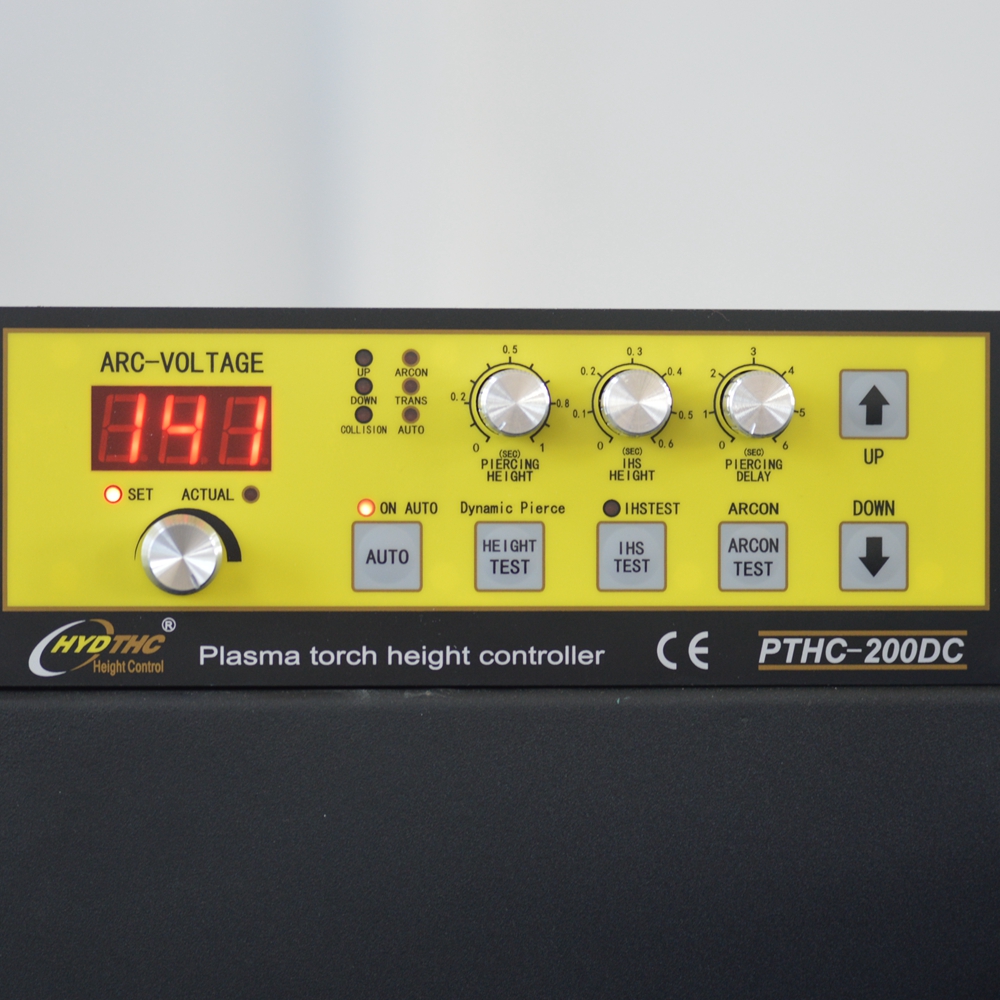

| Arc height control |  |
 |
Flame cutting torch with torch height control |

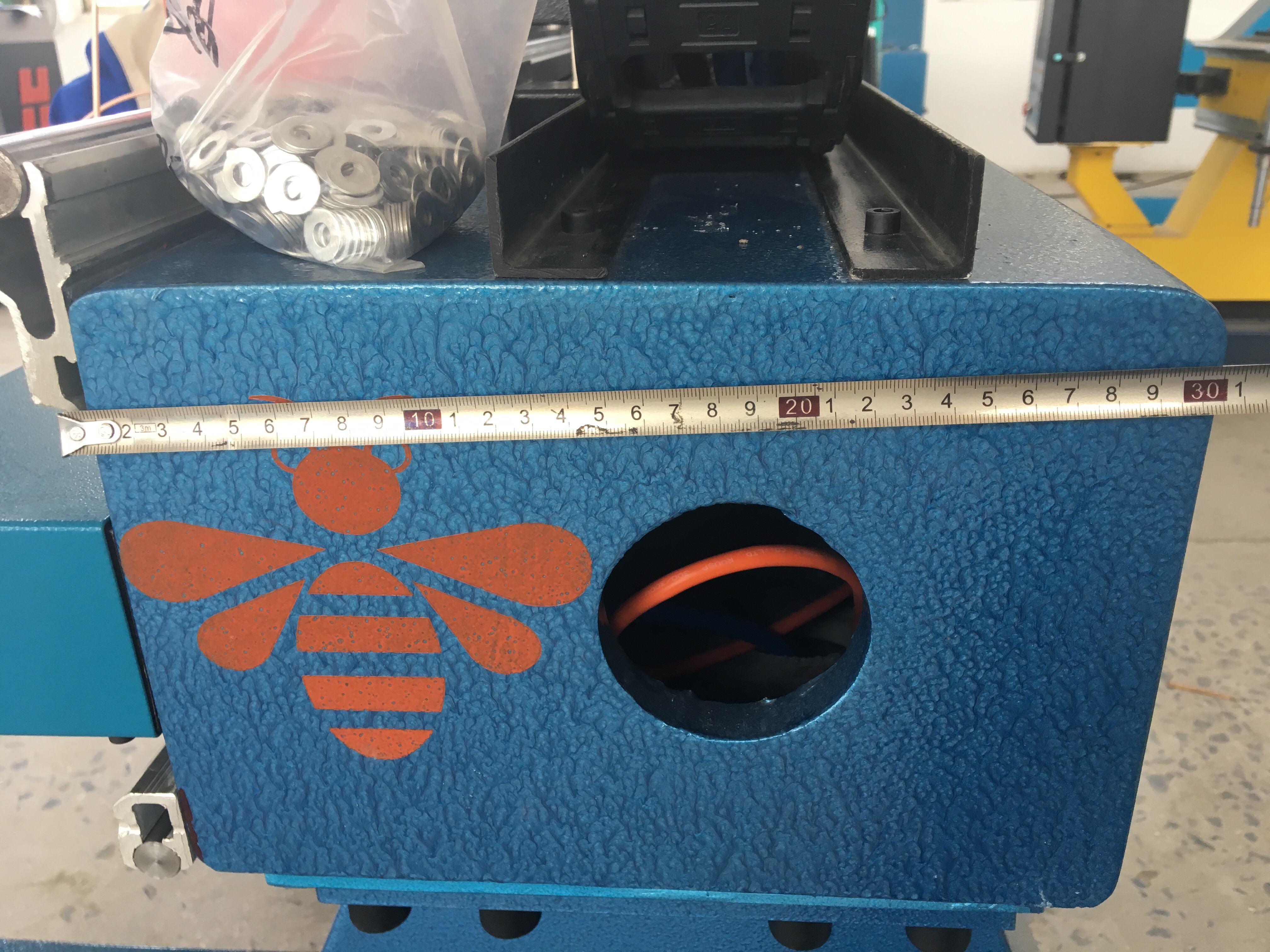

| 10mm plate structure beam to make the beam very strong and stable |  |
Cutting video:
