Description

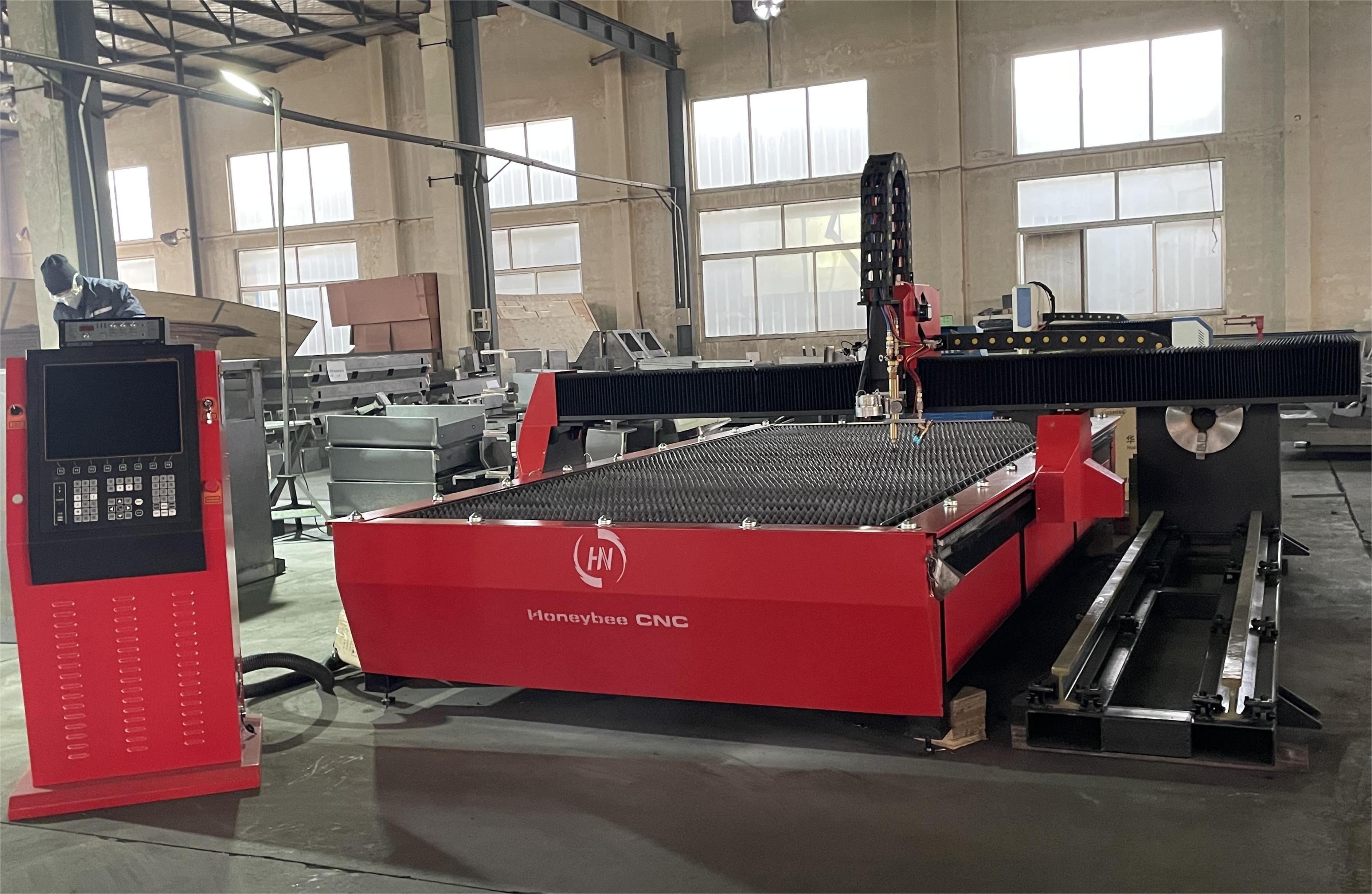

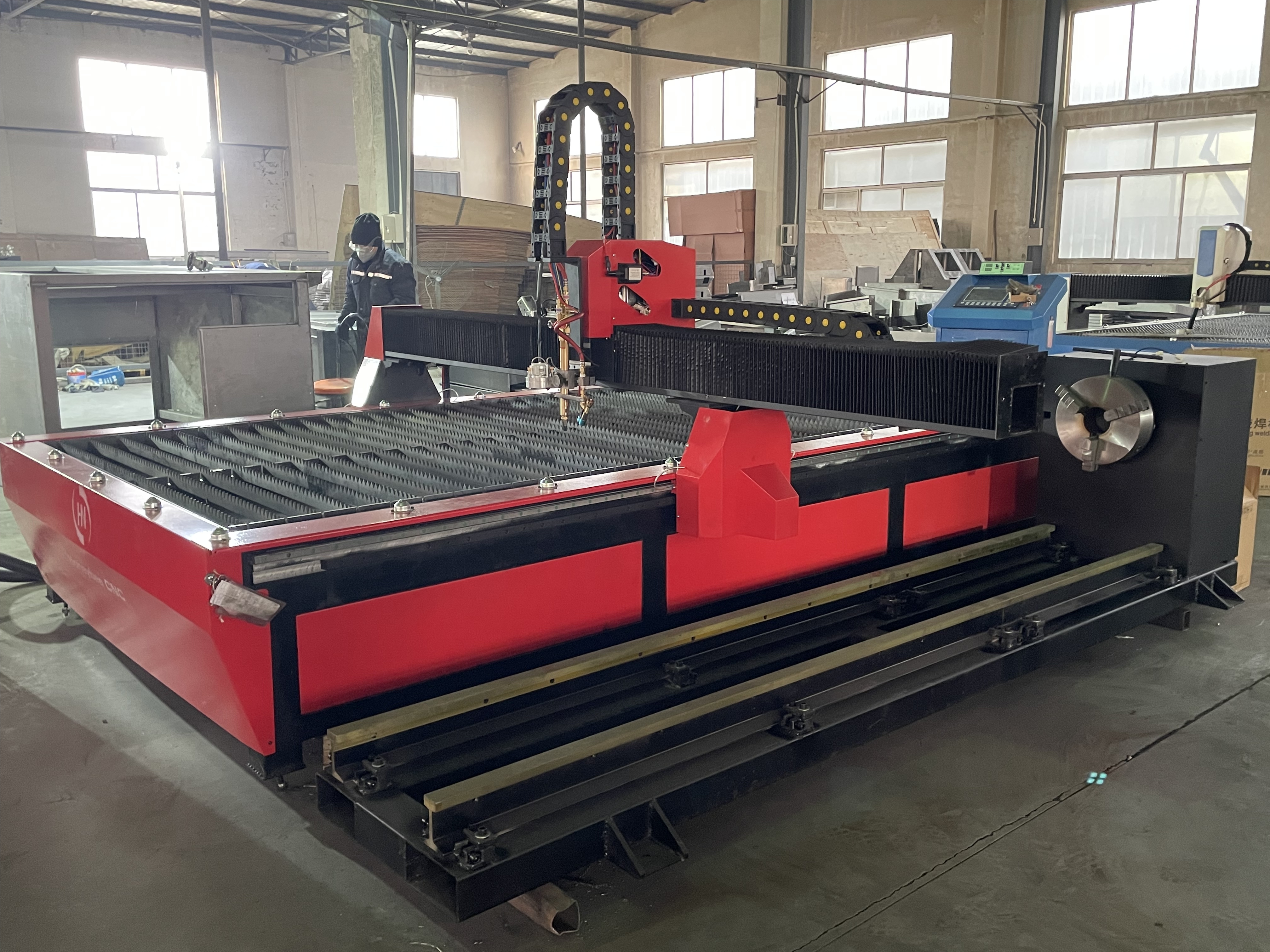

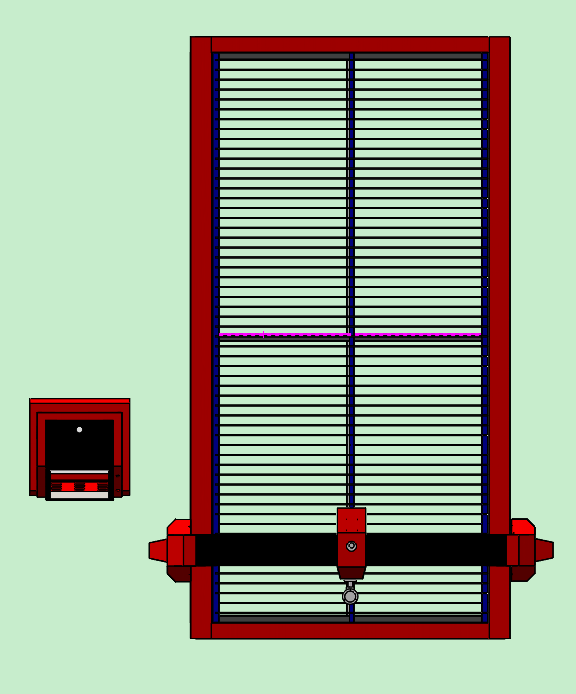

This CNC machine for sheet metal cutting table-Trailblazer adopts integral structure, making installation easier and more reliable. This cutting table adopts double-side driving to make the torch does longitudinal movement followed by straight tracks. The light design of the crossbeam has good rigidity, light self-weight, and good stability of movement. The machine is equipped with water tank type dust-removing equipment, in order to achieve environmental protection requirements; a smoking type dust-removing equipment also can be applied according to the customer’s needs. The plasma table is suitable for high-speed cutting thin sheet made of stainless steel, aluminium sheet and nonferrous metals etc. Additionally, it also has able to cutting thick plate. The machine is widely applied for sheet-metal working, auto parts, Wind turbines, and steel mould industries, etc

General Technical Data

Name	Table Pipe Type CNC Cutting Machine-Trailblazer
Model	HBTO–1500x3000
Structure	Table type, dual drive
Effective cutting size	1500*3000mm for plate, 50-250mm round pipe
Plasma Power	Options
Cutting thickness	0-30mm by Huayuan LGK-300HD
Torch No.	One plasma station and one flame station
Torch height control	Fangling Arc voltage auto THC for plasma cutting, anti-collision
Drive system	Dual drive, (Panasonic motor )
CNC system	Fangling controller FA2500B
Speed regulation range	0–10000 mm/min
File transmission	USB
Accuracy	±0.5mm
Power supply	50/60HZ, 220V 1 Phase

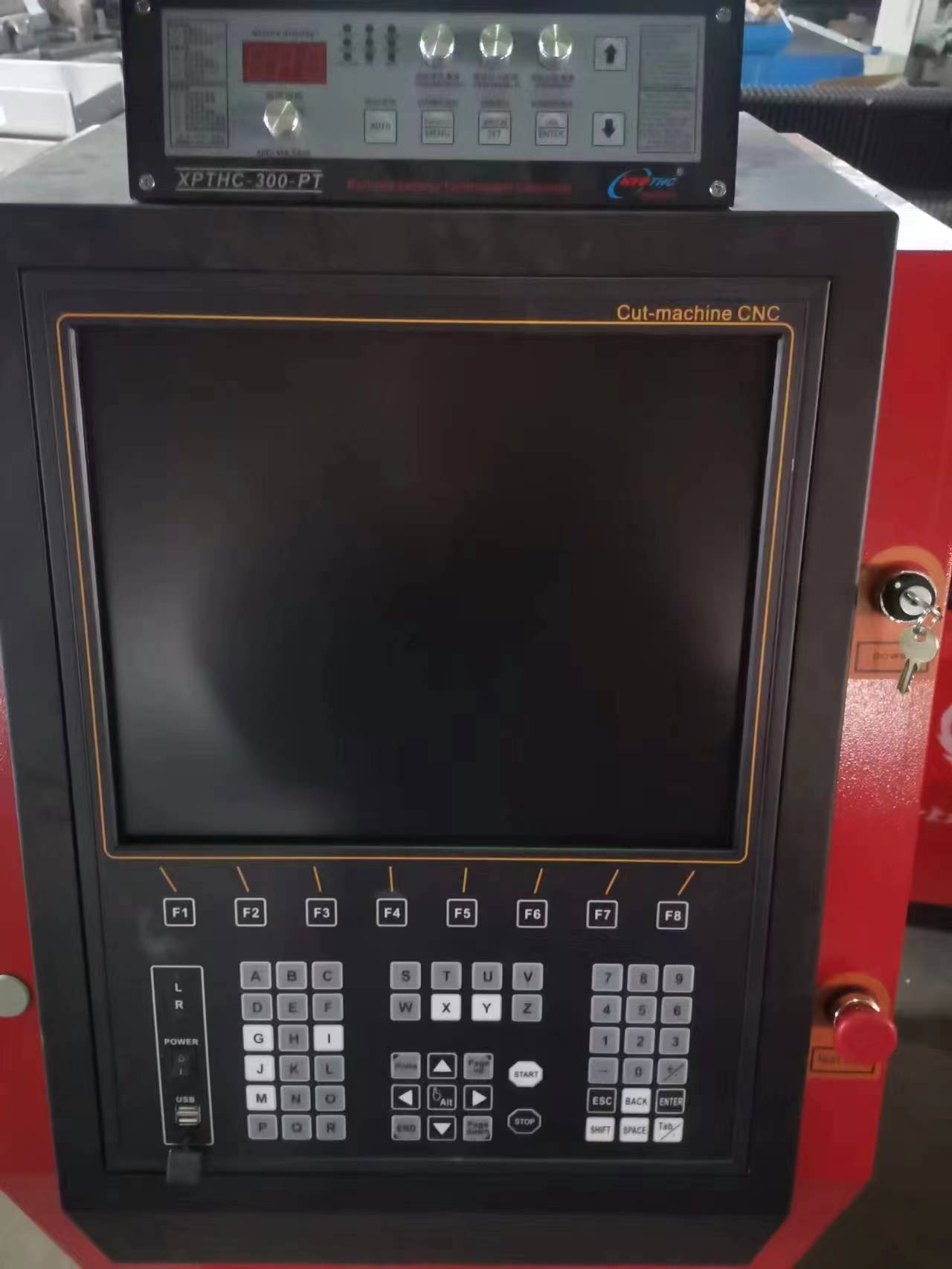

CNC System: Fangling Brand Model: FA-2500 15inch display,big screen easy to operate.
	Pipe cut section and chuck show: This machine can cut 50-250mm round pipe. for pipe straight cut.
